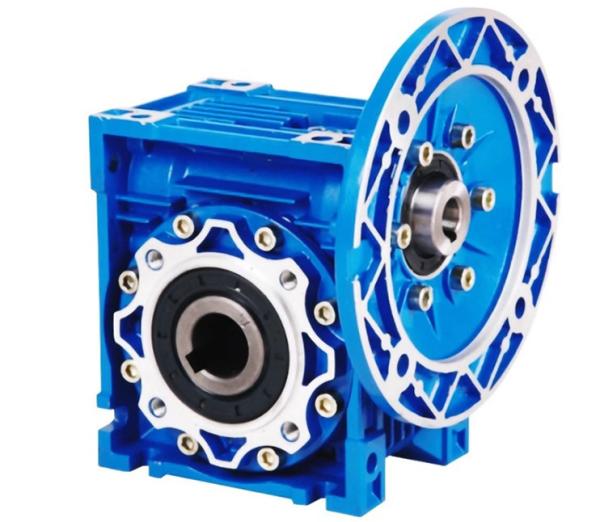

Round Flange NMRV030 Worm Reducer Gearbox For Nema23 Induction Motor

Brand Name : Rattm Motor

Model Number : NMRV030

Certification : CE CCC

Place of Origin : China

MOQ : 1piece

Price : 24.8-26.3

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 5000

Delivery Time : 2-7 work days

Packaging Details : Independent anti-collision foam+outer box packaging for each product

Model : NMRV030

Speed Ratio : 5:1-80:1

Input Bore Size : 11mm, 0.43"

Output Bore Size : 14mm, 0.55"

Color : Blue/Silver

Contact Now

Round Flange NMRV030 Worm Reducer Gear Gearbox Input 9/11mm Output 14mm For Nema23 Induction Motor

Round Flange NMRV030 Worm Reducer Gearbox For Nema23 Induction Motor

Feature:

Model:NMRV030

Type:Worm-Gear Reducer

Speed Ratio:10:1 15:1 20:1 25:1 30:1 40:1

Input Bore Size:11mm, 0.43"

Output Bore Size:14mm, 0.55"

Goods Color:Blue / Silver


Advantages:

High-quality aluminum alloy enclosure, thermal performance, large carrying capacity.

The multi-faceted installation.

Smooth transmission, low noise.

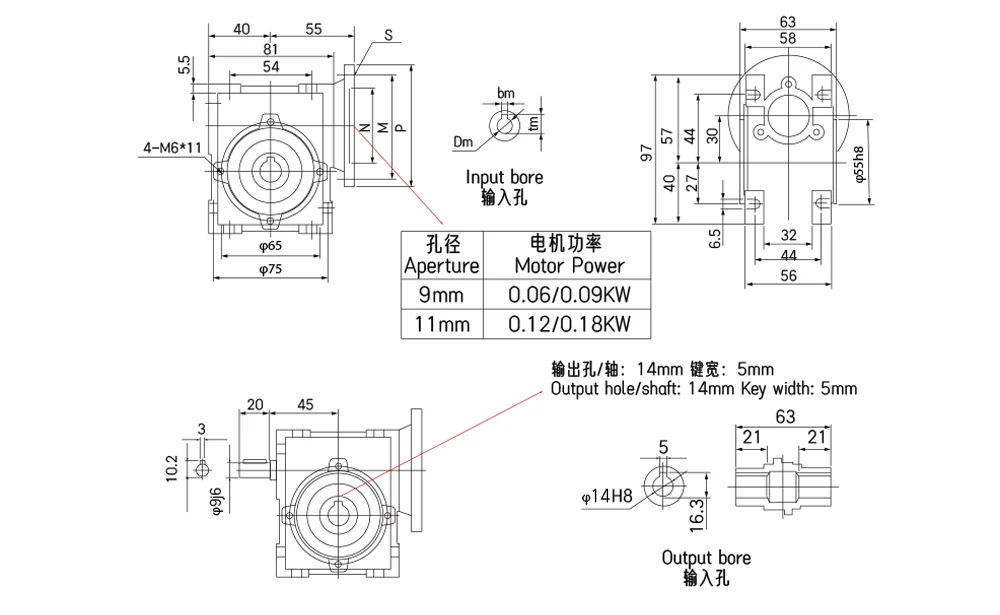

NMRV 030 Parameters (Aluminum shell weight 1.2KG)

Center

Distacne A

 Motor Flange The hole diameter of shaft (DM)

PAM

IEC

 N M P bm tm I Transmission Ratio
7.5 10 15 20 25 30 40 50 60 80 100
NMRV030 63B5 95 115 140 4 12.8 11 11 11 11 11 11 11 11 - - -
63B14 60 75 90
56B5 80 100 120 3 10.4 9 9 9 9 9 9 9 9 9 9 -
56B14 50 65 80

Round Flange NMRV030 Worm Reducer Gearbox For Nema23 Induction Motor
Round Flange NMRV030 Worm Reducer Gearbox For Nema23 Induction MotorRound Flange NMRV030 Worm Reducer Gearbox For Nema23 Induction MotorRound Flange NMRV030 Worm Reducer Gearbox For Nema23 Induction MotorRound Flange NMRV030 Worm Reducer Gearbox For Nema23 Induction MotorRound Flange NMRV030 Worm Reducer Gearbox For Nema23 Induction MotorRound Flange NMRV030 Worm Reducer Gearbox For Nema23 Induction Motor
