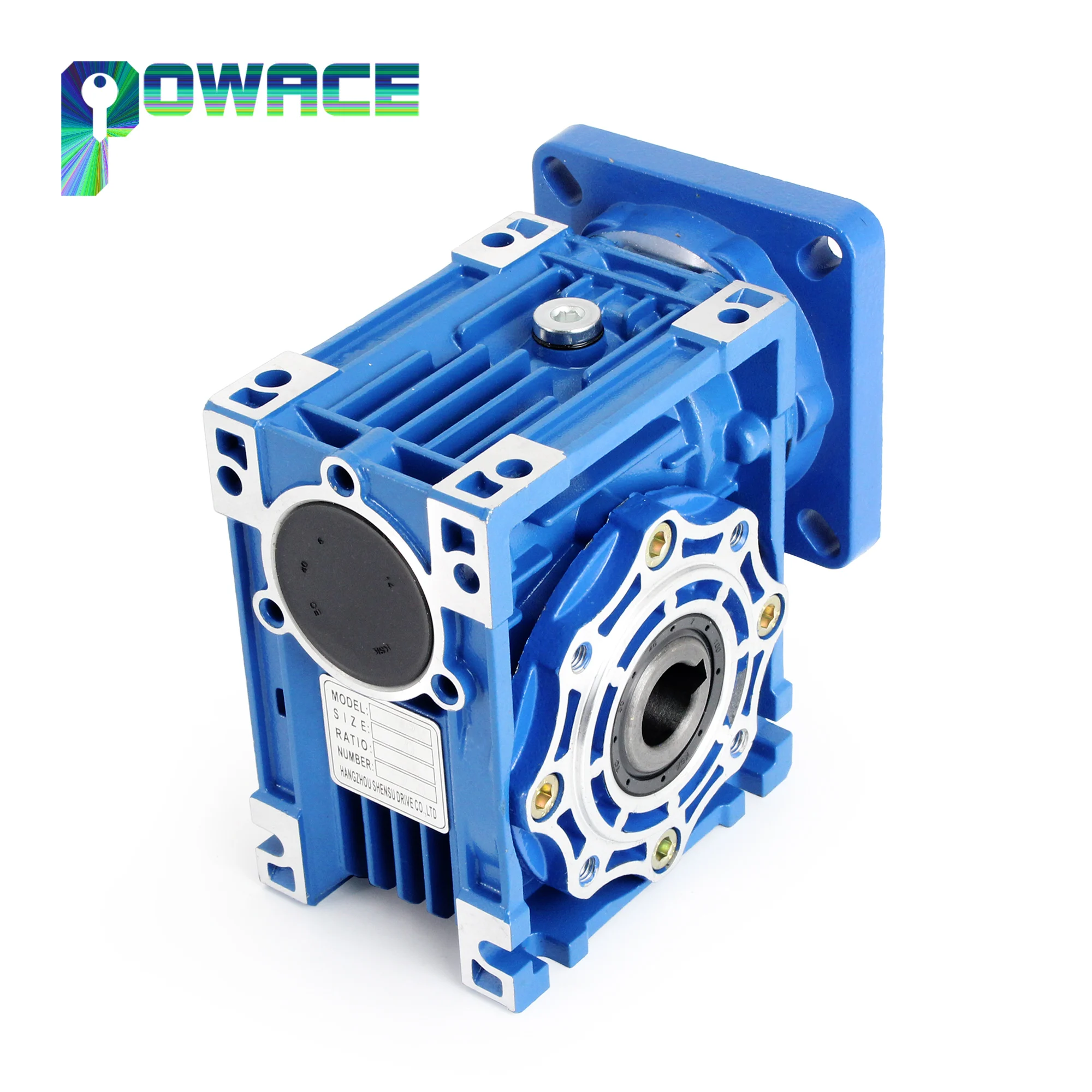

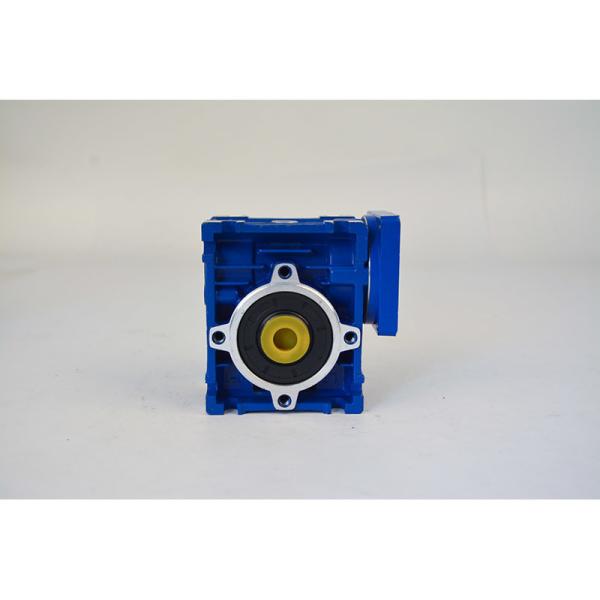

NMRV040 Square Flange Gear Worm Reducer 86x86 For Nema34 Stepper Motor

Name: NMRV040 Square Flange Gear Worm Reducer 86x86 For Nema34 Stepper Motor
Brand: Rattm Motor
Price: 27.9 USD

Quality NMRV040 Square Flange Gear Worm Reducer 86x86 For Nema34 Stepper Motor wholesale

Brand Name : Rattm Motor

Model Number : NMRV040

Certification : CE CCC

Place of Origin : China

MOQ : 1piece

Price : 27.9--32.6

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 5000

Delivery Time : 2-7 work days

Packaging Details : Independent anti-collision foam+outer box packaging for each product

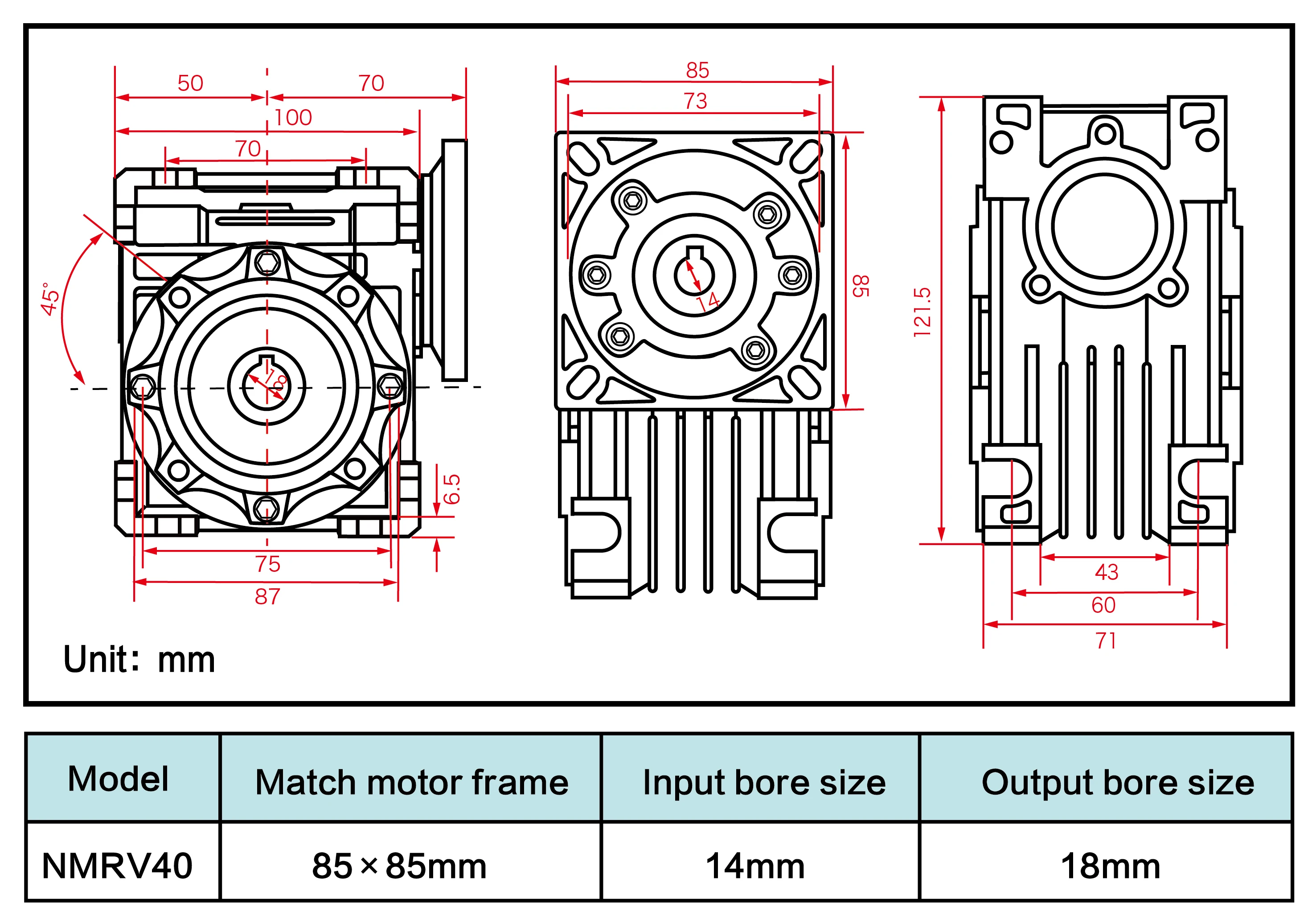

Model : NMRV040

Speed Ratio : 5:1-80:1

Input Bore Size : 11/14mm

Output Bore Size : 18mm

Flange Frame(A*A) : 60*60,86*86,90*90,104*104

Color : Blue/Silver

Contact Now

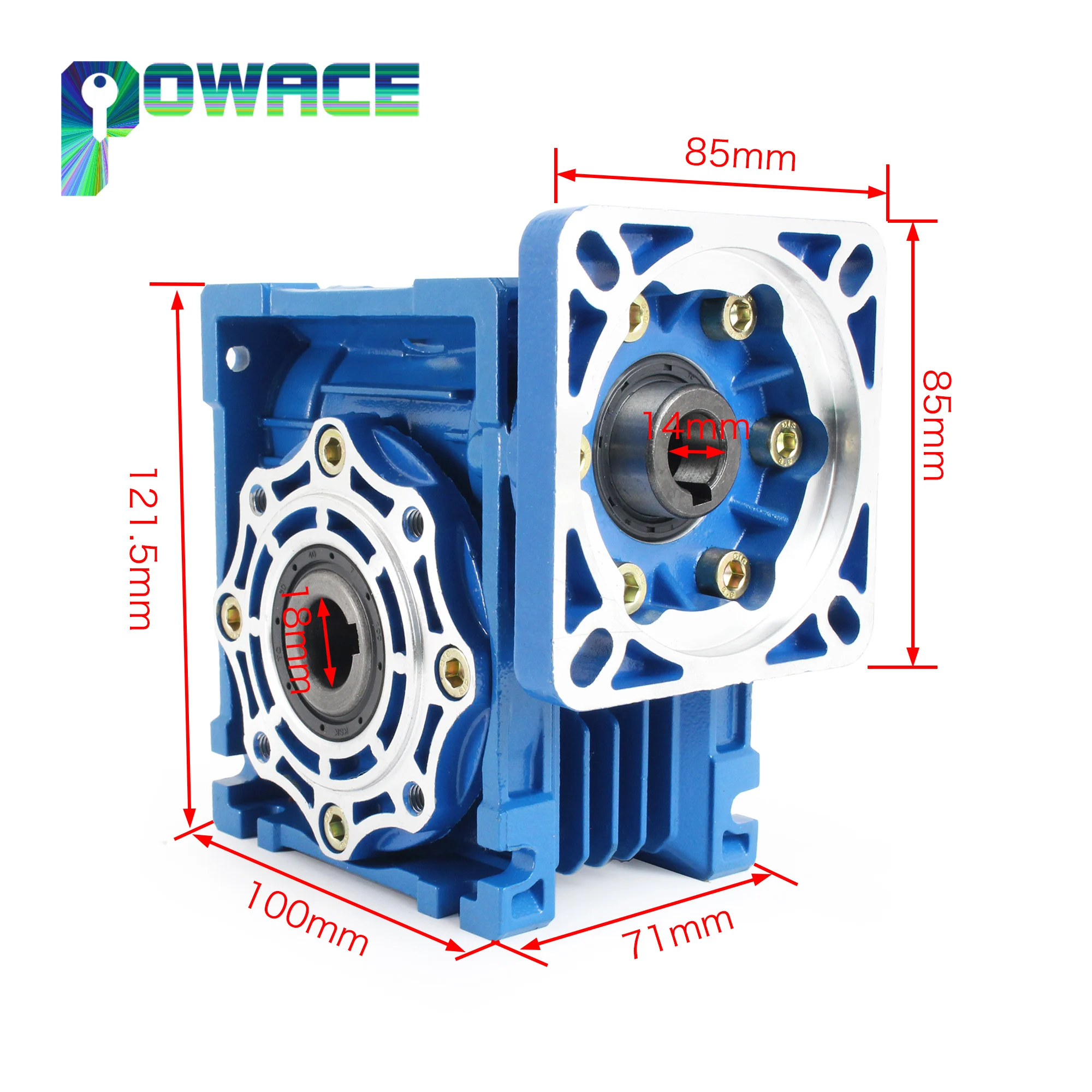

NMRV040 Square Flange Worm Reducer 86*86 Input 14mm Output 18mm For Nema34 Stepper Motor

NMRV040 Square Flange Gear Worm Reducer 86x86 For Nema34 Stepper Motor

Feature:

Model:NMRV040

Type:Worm-Gear Reducer

Speed Ratio:5:1,7.5:1, 10:1, 15:1, 20:1, 25:1, 30 :1, 40:1, 50:1,60:1,80:1,100:1(Please write Ratio you need after order)

Input Bore Size:11/14mm (default=14mm)

Input Flange Model:NEMA34 86mm(For other Flange model, please leave a message)

Output Shaft Diameter :18mm

Application:Matched with Servo/Stepper Motor

Goods Color:Argentate

Flange Frame(AA):6060,8686,9090,104*104

Goods Color:Blue/Silver

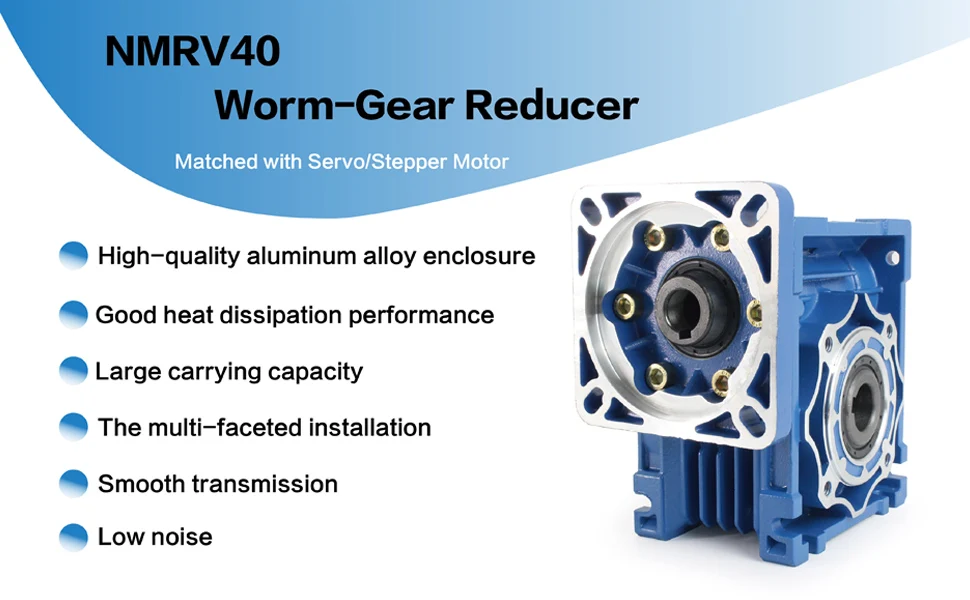

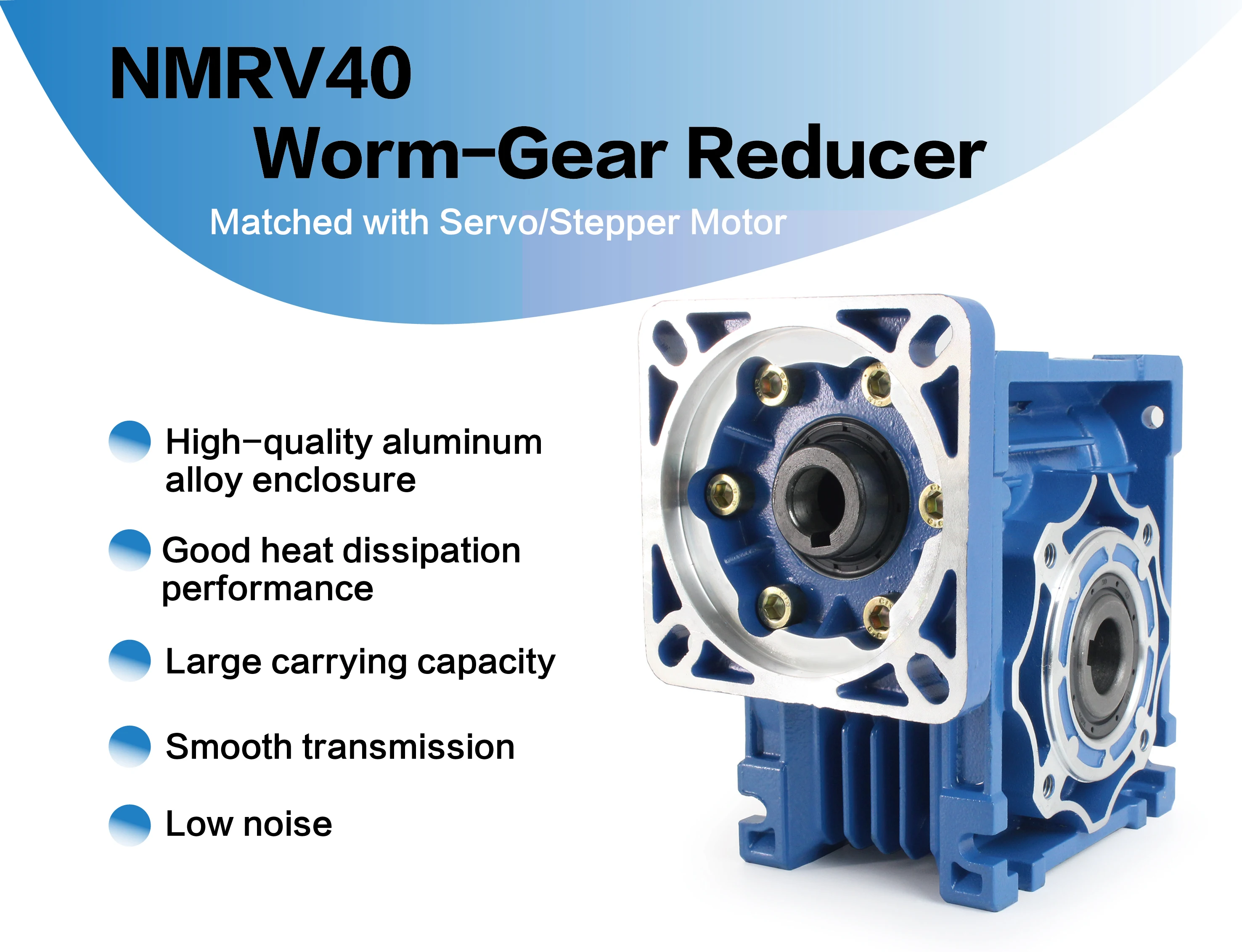

Advantages:

High-quality aluminum alloy enclosure, thermal performance, large carrying capacity.

The multi-faceted installation.

Smooth transmission, low noise.
