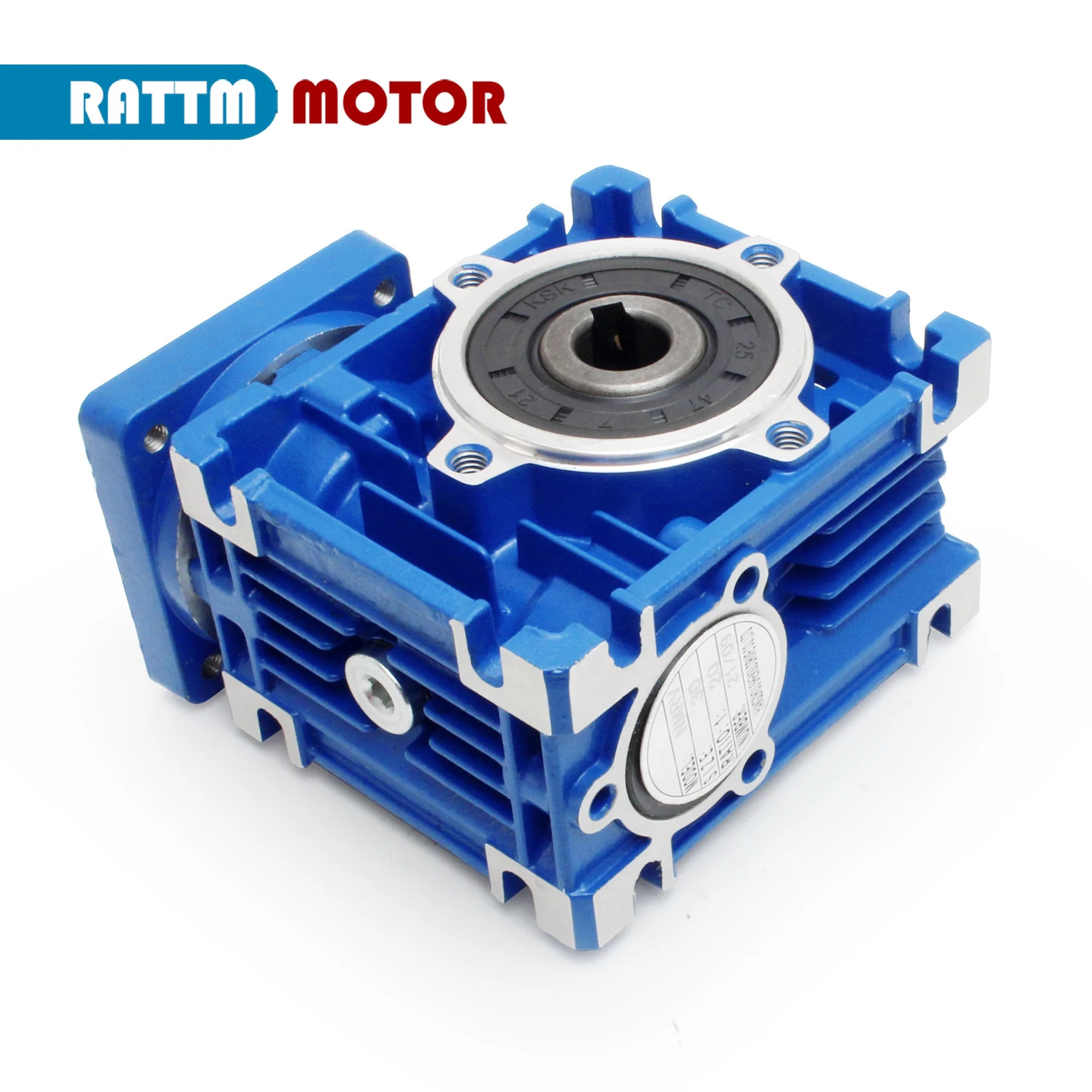

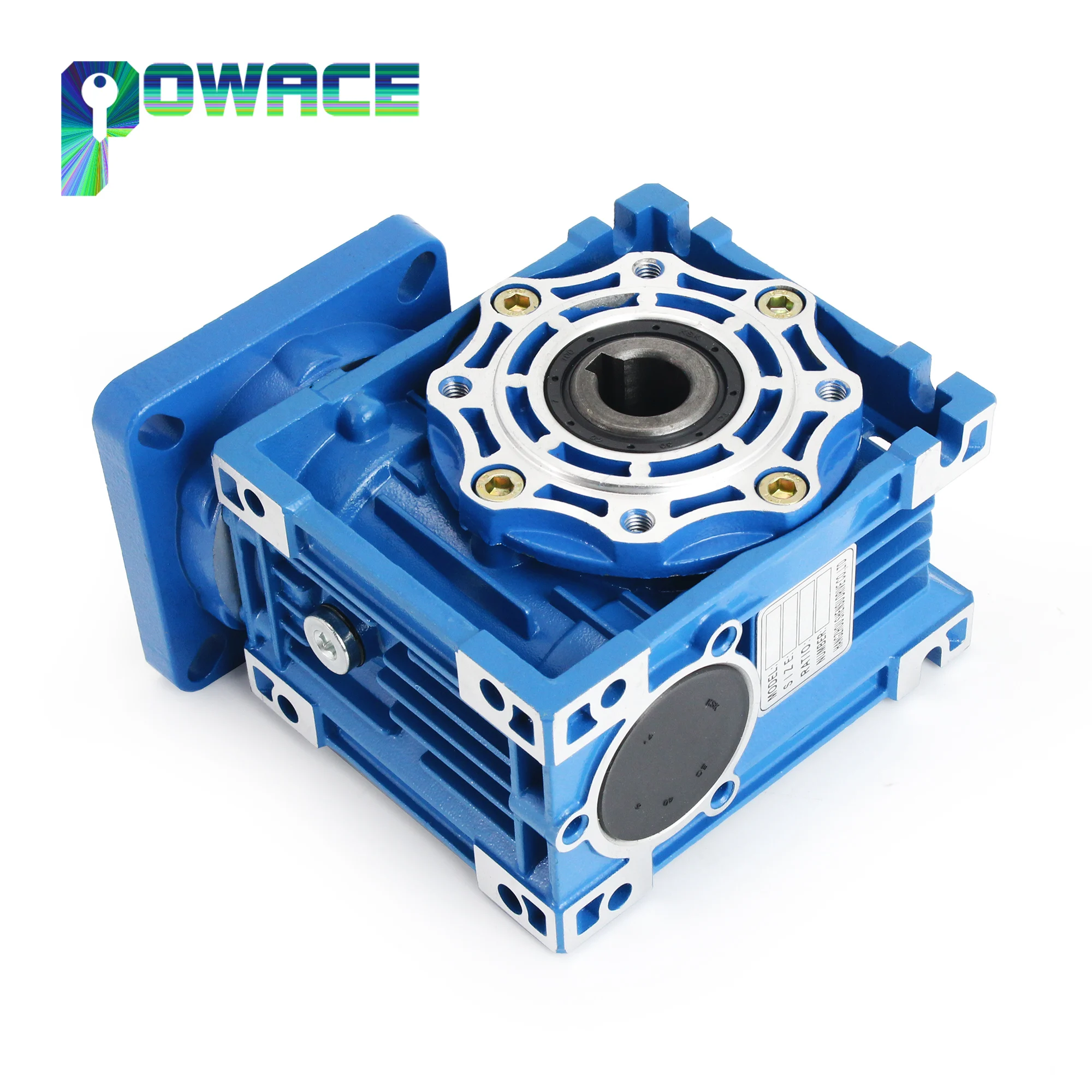

NMRV063 Worm Gear Gearbox Ratio 5: 1-100: 1 For Nema 42 Servo Stepper Motor

Name: NMRV063 Worm Gear Gearbox Ratio 5 1100 1 For Nema 42 Servo Stepper Motor
Brand: Rattm Motor
Price: 58.6 USD

Quality NMRV063 Worm Gear Gearbox Ratio 5: 1-100: 1 For Nema 42 Servo Stepper Motor wholesale

Brand Name : Rattm Motor

Model Number : NMRV063

Certification : CE CCC

Place of Origin : China

MOQ : 1piece

Price : 58.6-62.3

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 5000

Delivery Time : 2-7 work days

Packaging Details : Independent anti-collision foam+outer box packaging for each product

Model : NMRV063

Speed Ratio : 5:1-100:1

Input Bore Size : 14/19/22/24mm (default=22mm)

Output Bore Size : 25mm

Flange Frame(A*A) : 80*80 110*110 130*130(default=130*130)

Color : Blue/Silver

Contact Now

NMRV063 Reducer Worm Gear Gearbox Reducer Ratio 5: 1-100: 1 For Nema 42 Servo Stepper Motor Flange 80/110/130

NMRV063 Worm Gear Gearbox Ratio 5: 1-100: 1 For Nema 42 Servo Stepper Motor

Feature:

Model:NMRV063

Type:Worm-Gear Reducer

Speed Ratio:5:1,7.5:1, 10:1, 15:1, 20:1, 25:1, 30 :1, 40:1, 50:1,60:1,80:1(Please write Ratio you need after order)

Input Bore Size:14/19/22/24mm (default=22mm)

Input Flange Model:NEMA32 /34 /52(default=NEMA52)

Output Shaft Diameter :25mm

Application:Matched with Servo/Stepper Motor

Goods Color:Argentate

Flange Frame(AA):8080 110110 130130(default=130*130)

Goods Color:Blue/Silver

NMRV063 Worm Gear Gearbox Ratio 5: 1-100: 1 For Nema 42 Servo Stepper Motor
